This wizard verifies that all necessary commissioning steps have been successfully completed. It is possible to perform this check for all devices in the project, for a specific device, or for all devices linked to a specific group address. The functionality is similar to the Step 'Check Devices' of the Groups Diagnostics wizard, but works on all devices in the project, not only on the devices connected to a specific group address.

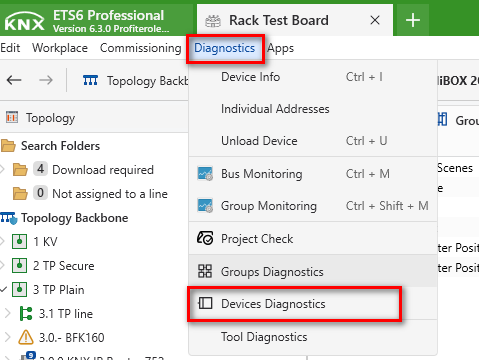

The Devices Diagnostics tab can be invoked via the project menu bar 'Diagnostics' > Devices Diagnostics
The next sections describe the two steps:
- Basic Checks
- Extended Checks
Basic Checks

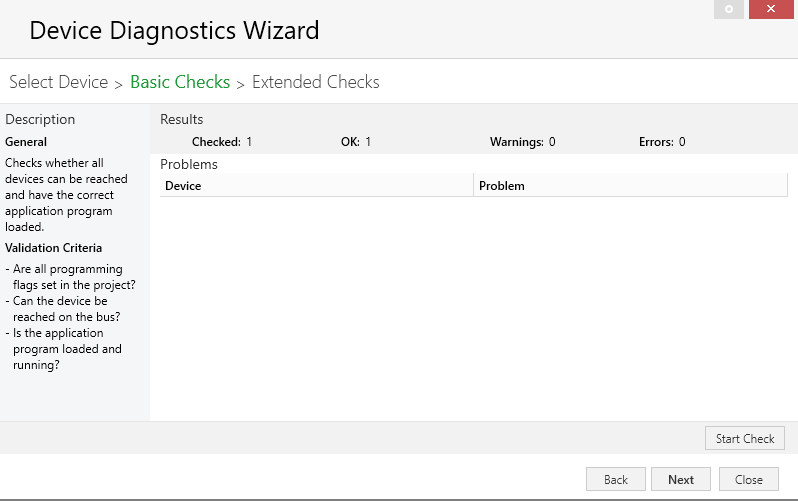

If the device in question can be reached and if the application program has been downloaded correctly, the result as shown below will appear on the screen.

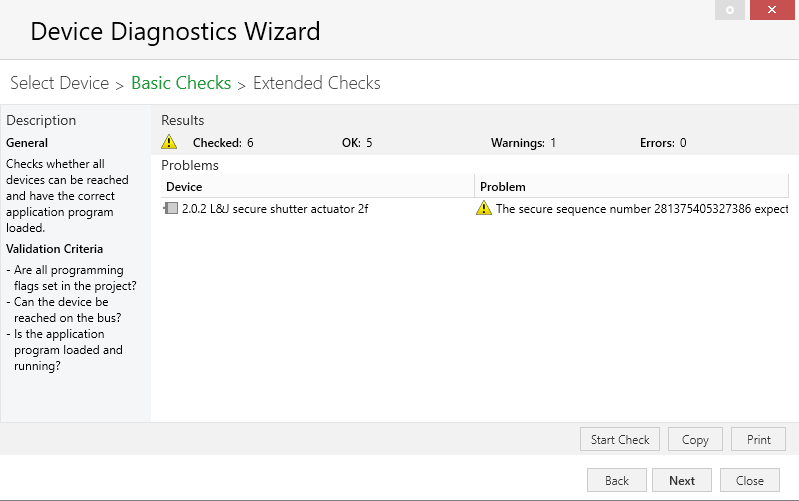

If the device in question cannot be reached or if e.g. no application program is loaded in the device, the information as shown below will be displayed:
- Errors are marked with a red bullet in front of the problem description
- Warnings are marked with a yellow triangle exclamation mark in front of the problem description
- If no problems are detected, a green bullet will be displayed behind the field 'Result'
More detailed information on the Basic checks can be found in: Devices Diagnostics (Detailed)
Extended Checks

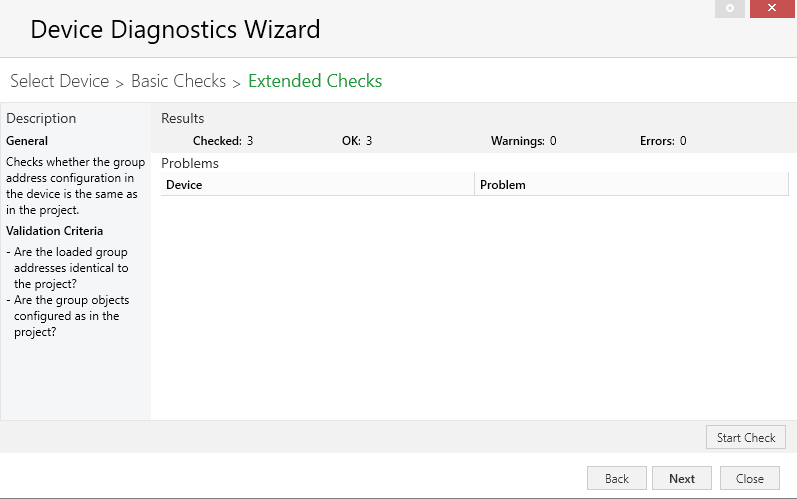

The next step of the wizard allows you to perform 'Extended Checks'. These verify whether the configured group addresses in the devices are the same as those in the project.
More detailed information on the Extended checks can be found in: Devices Diagnostics (Detailed).
