A project can be exported via the
- Dashboard
- Local Projects List
Dashboard

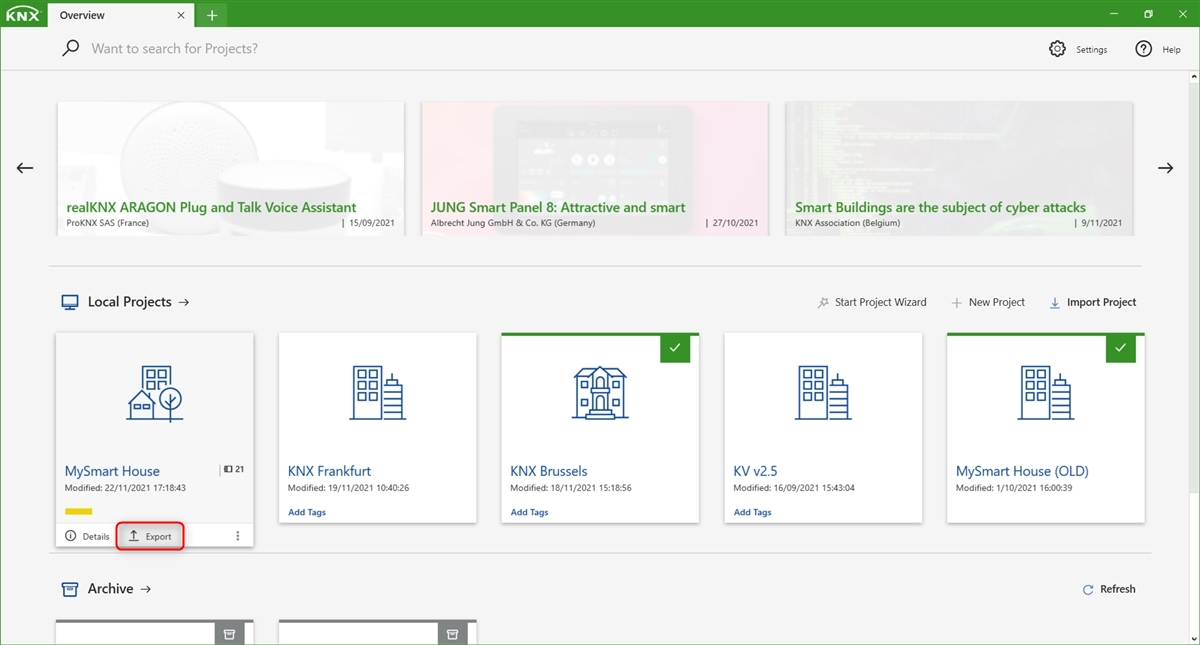

On the dashboard via the button 'Export' when hovering over a project tile.
Local Projects List
For single project export
Open the Local Projects list, hover over a project tile and click the 'Export' button from the tile or the sidebar.

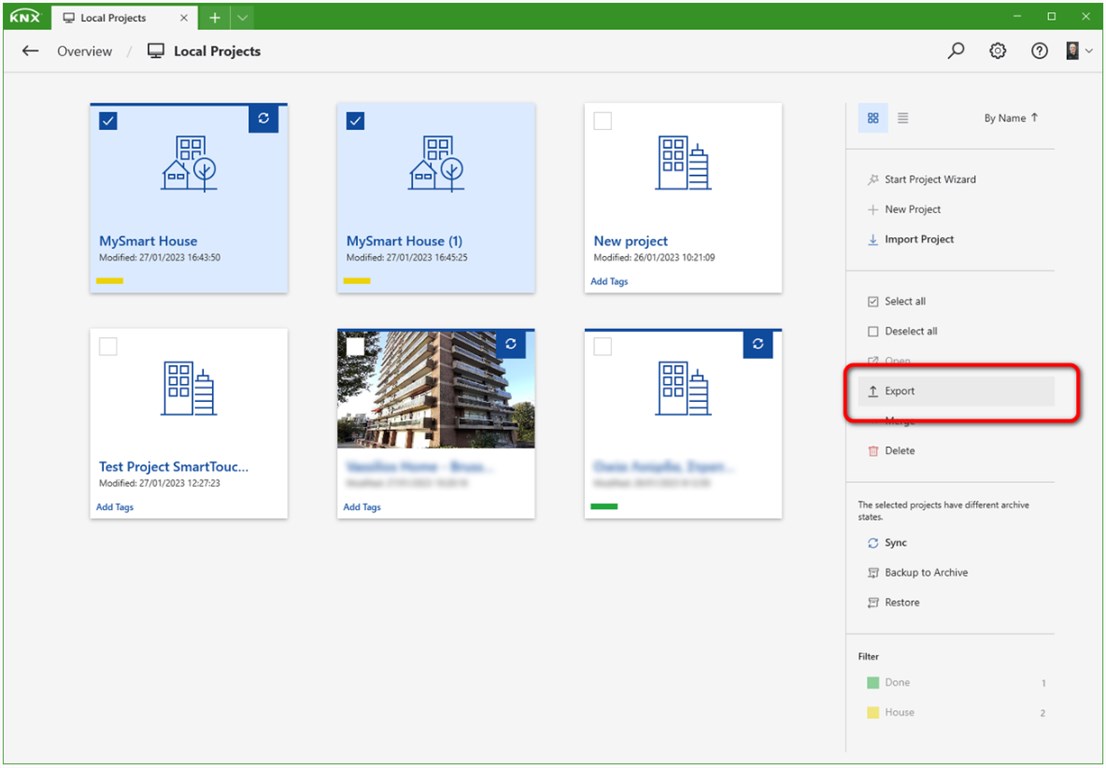

For multiple project export
Open the Local Projects list, hover over a project tile and select it via its checkbox. Then, it is possible to select multiple projects by checking their checkboxes and then click the 'Export' button on the sidebar.
Constraints & data protection
ETS6 exports project only in the ETS6 project format, i.e. as knxproj file (*)
Any bus connections that have been set for a line, are included in the export as they are an integral part of the project.
ETS licensing is checked upon project export:
- Demo license: projects with maximum 5 devices can be exported
- Lite/Home/Full license: projects of the size that the respective license can handle can be exported (e.g. Lite can export a project with a maximum of 20 devices)
(*) Such file can always be imported in ETS with the same or higher major/minor version (e.g. Major.Minor.Patch: 6.1.0), never in an older minor version.
Upon project export ETS adds 2 signatures to project files: an 'integrity' and a 'source' signature.
- Integrity signature: Assures the validity of the data and is based on a generic code.
- Source signature: Links the project file to an ETS license and thereby confirms that the export was done with a properly licensed ETS.
