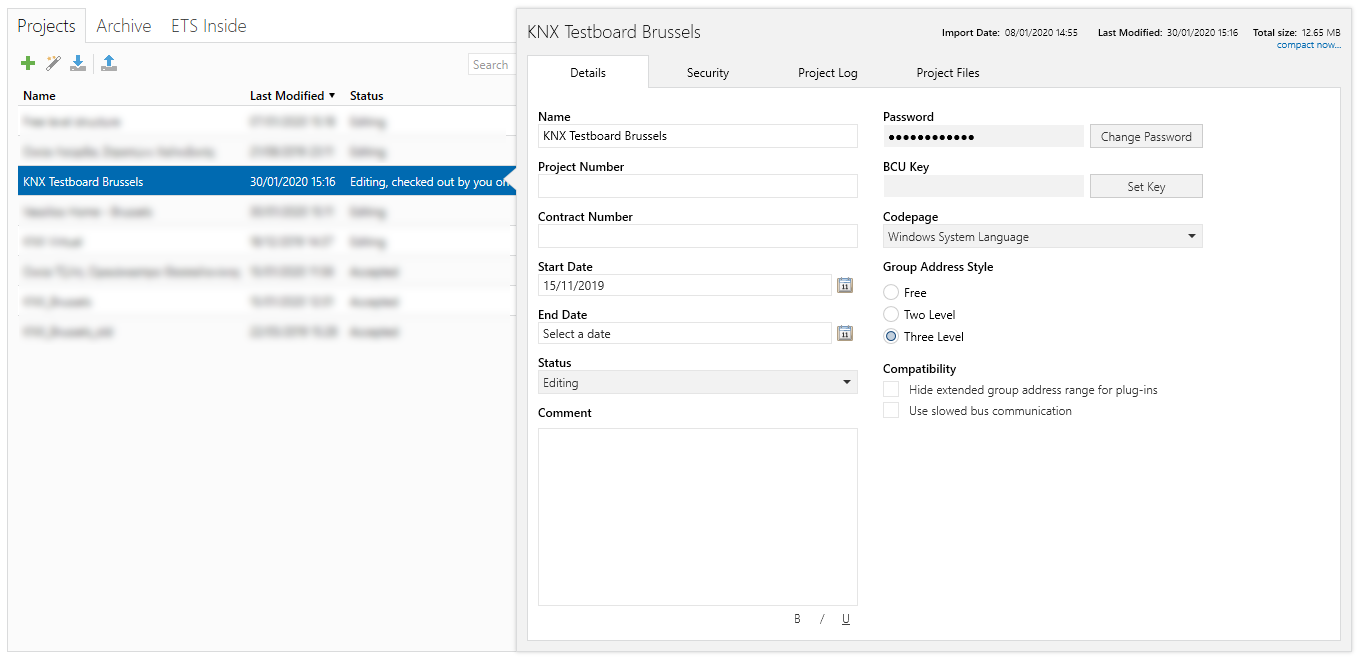

Project details can be accessed via a single click on the project in the project list, a double-click opens the project.
| Field |
Description |
| Name |
Project name |
| Project Number |
Freely definable |
| Contract Number |
Freely definable |
| Start Date |
Date of project creation; can be changed |
| End Date |
Date of project end; must be set manually |
| Status |
Project status (editable)
- When creating the project set to Unknown
- From the project archive will also be shown (where/who/when) if the project is saved there
- Parameter can marked as "customer adjustable" by manufacturers in the product databases
This prevents to overwrite these parameters by ETS (e.g. on full/ partial download) in special conditions. Use case are e.g. parameters which will AND should be changed after the commissioning anyhow by the customer in the device.
- Scene- value on local in place adjustment
- calibration value determined in place and saved in device
With project state Released/Locked these parameter will be not downloaded (anymore). For more information see here.
|
| Comment |
Freely define/format |
| Compact now |
This function is shown when hovering the total size of the project. It removes all product data that is not referenced in the project, making thus the project size smaller.
|
| Password |
Sets/resets the project password, more details here.
|
| BCU Key |
- if set: all devices of the project supporting this feature will be locked with the project's BCU Key during device download, the affected devices can afterwards only be read/modified by means of the BCU Key.
- caution, use this feature with care and consequently:
- ALL affected devices must be returned to the manufacturer if the BCU Key is lost or forgotten
- it is highly recommended to update ALL devices whenever the BCU Key is changed
- more details here
|
| Codepage |
Defines the language setting for the textual parameters of all devices in a project
see also: languages under general settings. |
| Group Address Style |
The Group Address style of a the project can be configured here. For more details see here. |
| Compatibility |
- Hide extended Group Address range for plug-ins (for more details see here)
- this setting is by default enabled and has the purpose to avoid possible incompatibility issues with ETS3 plug-ins
- if set:
- ETS3 plug-ins cannot use the full Group Address range
- i.e. in the 3-level representation this range is limited to: 0/0/1 .. 15/7/255
- if not set:
- ETS3 plug-ins can use the full Group Address range
- i.e. in the 3-level representation this means: 0/0/1 .. 31/7/255
|
- Use slowed bus communication
- if set:
- all devices of the project will be programmed with standard frames (also the devices supporting long frames)
- telegram throttling is enabled, which means that ETS will send out telegrams at a lower pace, i.e. a 150 ms delay between two telegrams will be used, this in order to support first generation products properly
- if not set:
- devices supporting extended frames will be programmed with extended frames, devices not supporting long frames will be programmed with standard frames
- telegram throttling is not enabled, which means that ETS will send out telegrams without delay between two telegrams
|
