      Create dynamic structure

      Ufuk Unal
      • Updated

      The dynamic structure is organized in channels. Channels are used for structuring an application program.

      Add Channel

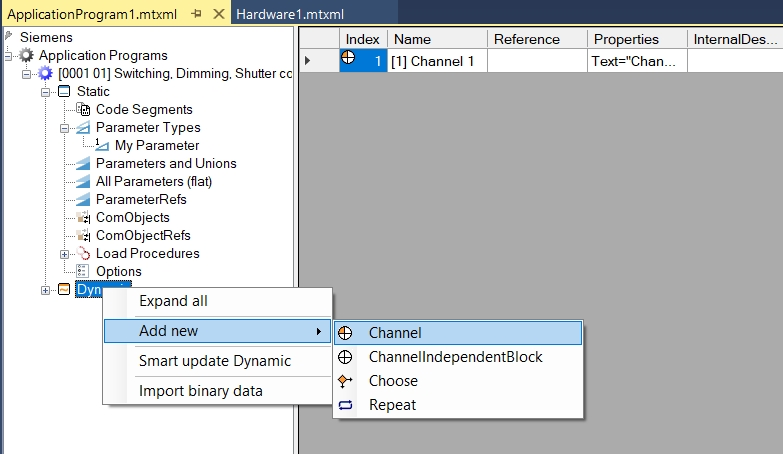

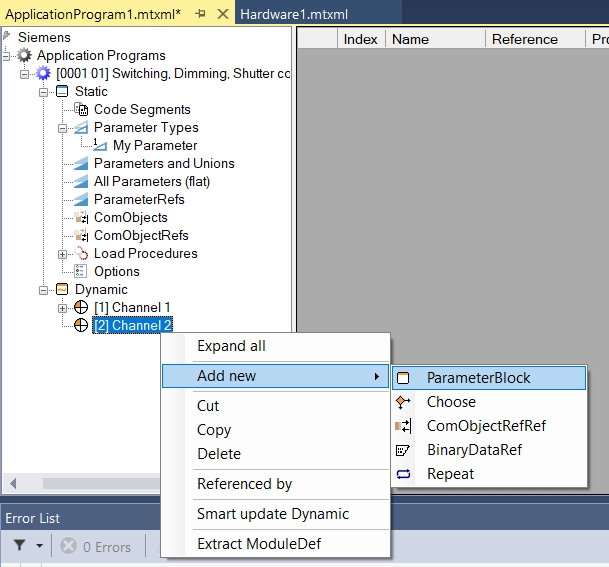

      • Right-click 'Dynamic' in the application program and select Add new/Channel.

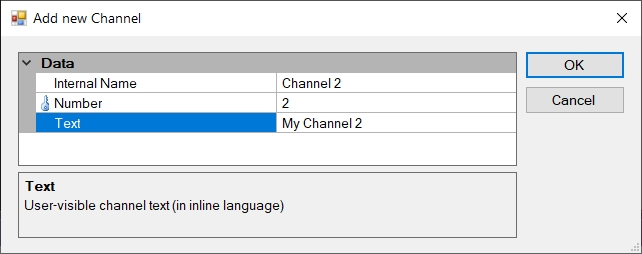

      • Type in a user-visible text for the channel, e.g. My Channel 2. Mind that Channel 1 was already created by default.



      • Right-click 'Channel 2' in the application program and select Add new/Parameter Block.

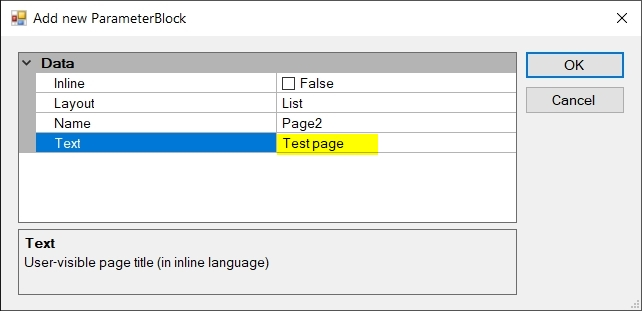

      • Enter the text 'Test page' for the user-visible page title.

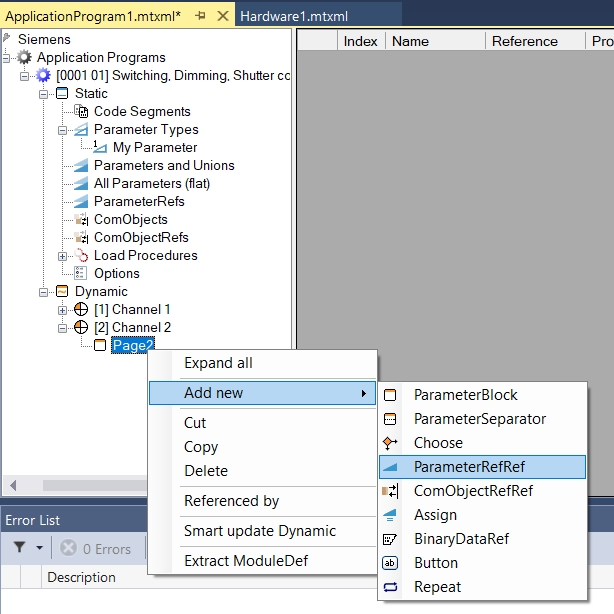

      • Right-click Page2 under Channel 2 and select Add new/ParameterRefRef.

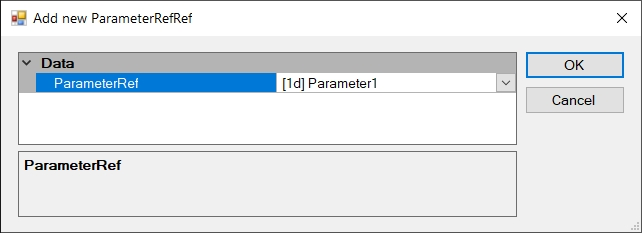

      • Select Parameter 1.

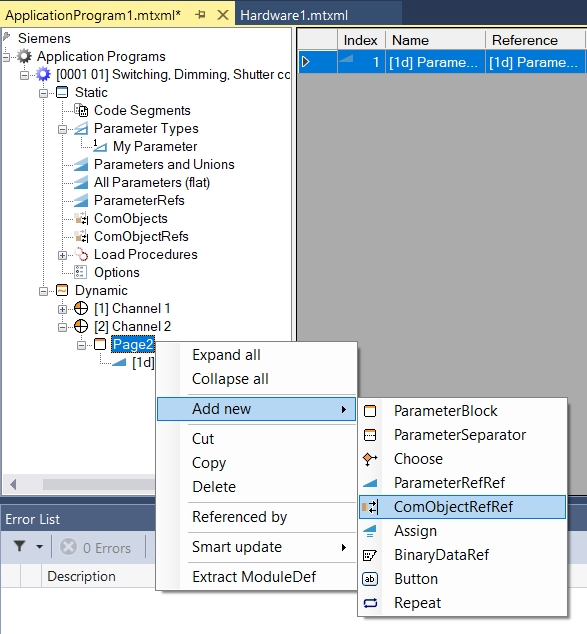

      • Right-click Page2 under Channel 2 and select Add new/ComObjectRefRef.

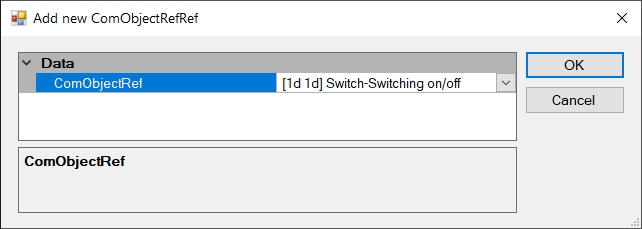

      • Select Switch-Switching on/off under ComObjectRef.

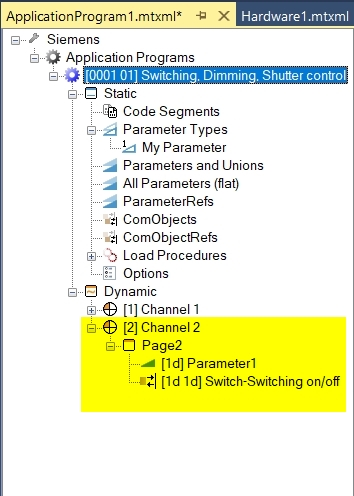

      • Final result in the Manufacturer Tool.

      More information can be found under Design Dynamic Structure.
