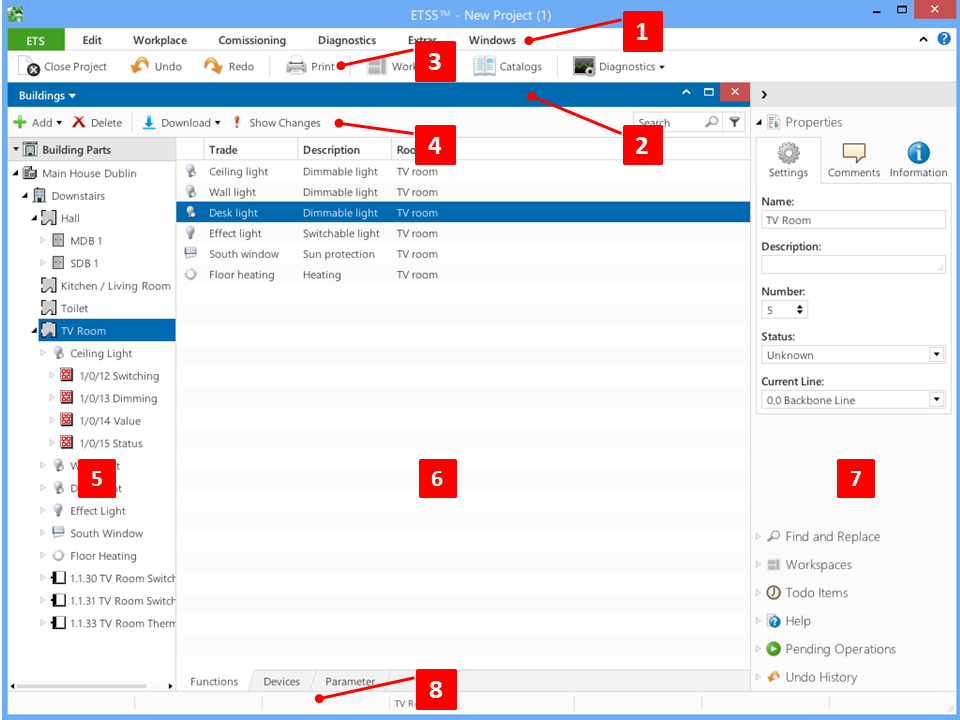

ETS works with a main window (which can be recognized by the blue border) as well as additional icons in this, e.g. Close. The main window is always active after ETS is launched and remains so until ETS is closed. The main window in ETS is subdivided into various areas. The details of the individual windows within the ETS main window can be seen in the figure.
- If several projects are open at once, an additional Project Bar will appear which contains one separate tab for each. There can be several presentation styles for one and the same project. The styles can then be switched using the tabs.
- Tabs able to rearrange within the Project Bar, to do so please drag & drop an tab at the desired position (yellow marker) - between to other tabs.
- Per Drag & Drop it is possible to reunite a (maximized) tab into another tab (tabs needs to be of the same project), to do so please drag and drop a tab over antather (yellow marked) tab.
- The Project Bar is positioned between the Title Bar (2) and the Tool Bar (3).
