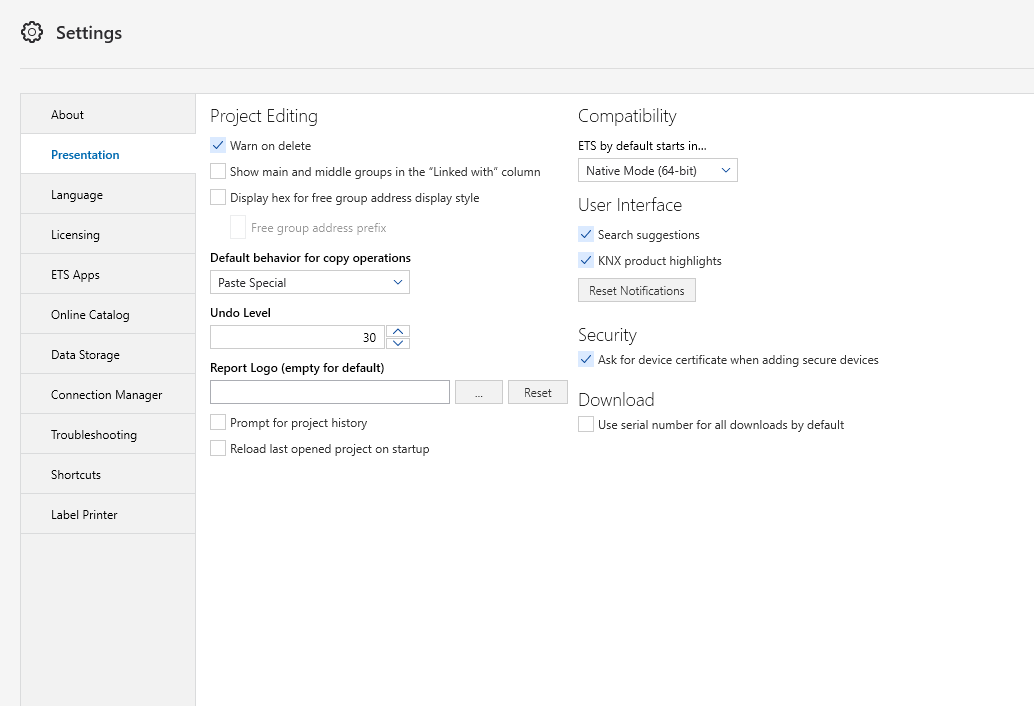

Presentation

Option	Description
Warn on delete	When activated, there will be a prompt before elements are deleted. However, this does not apply when projects are about to be deleted. For safety reasons, there is always a warning and cannot be disabled.
Show main and middle groups in the "Linked with" column	When this option is activated, the main and middle group address names are displayed in "Linked with" column if the group address is not part of a building function.
Display hex for free Group Address display style	When activated, the Group Addresses in the Free Group Address Style are numbered in hexadecimal instead of decimal.
Free Group Address prefix	When activated, a character which identifies hexadecimal Group Addresses can be entered in this field.
Default Behavior for Copy Operation	Select from Paste, Paste Special (default) and Paste Extended (See here for details). The option 'Paste Extended' can only be enabled if the corresponding app is activated.
Undo Level	Maximum number of user actions allowed for the Undo and Redo functions (possible values, 1 ... 200).
Report Logo	All printouts have the ETS logo on the cover page by default. The logo can be replaced with your own logo here. The logo format shall be one of the following: bmp, tif, tiff, jpg or jpeg; for optimal results, it should have the following dimensions: 6.33 cm x 6.33 cm (square). Other dimensions will be scaled to fit this.
Prompt for project history	When activated, ETS asks to make a log entry for every open project when closing ETS. Each of these requests can be skipped by pressing the ESC key.
Reload last opened Project on Startup	When activated, ETS opens automatically the last modified project when it starts. If more than one project is open at the time of closing, the last project closed will be the one located farthest to the right in the Project Bar.

Option

Description

Start in Native Mode(64 Bit)

Runs ETS in its full native 64-bit environment, providing maximum performance, improved stability, and access to the system’s full memory capacity.
Use this mode for all normal workflows, including large projects, heavy processing, and plug-in operations that support 64-bit execution.

Notes:
If ETS was previously forced into 32-bit (compatibility) mode for plug-in reasons but now launches natively, ETS will display a hint indicating that compatibility mode is temporarily active and will be disabled on the next clean startup.

More information here.

Start in Compatibility Mode

Runs ETS in 32-bit compatibility mode, designed for legacy plug-ins or extensions that do not yet support 64-bit.
Use this mode only when required by older add-ons or environments with known compatibility constraints.

Notes:

Performance and memory capacity are lower than in native mode. ETS will restart in 32-bit mode immediately after selecting this option. Compatibility mode can be temporary; ETS will confirm when it will revert back to native mode on the next startup.

Also, when a user starts ETS in compatibility mode, an icon is now displayed to indicate that ETS is running in compatibility mode in ETS Dashboard.

More information about 32 bit and 64 bit, you can check here.

Option

Description

Search suggestions

When activated, there will be textual suggestions in the search fields.

Show 'KNX Product Highlights'

When activated, the RSS feed for the KNX product information is shown.

This requires internet connection.

Option	Description
Αsk for device certificate when adding secure device	When activated, there is a query for device certificates when inserting KNX Secure devices into a project (for secured KNX installations; for details, see here).

Option	Description
Use serial number for all downloads by default	If selected, ETS will automatically use the serial number to download the individual address of the device.
