ETS Settings

      Shortcuts

      Vassilios Lourdas
      • Updated

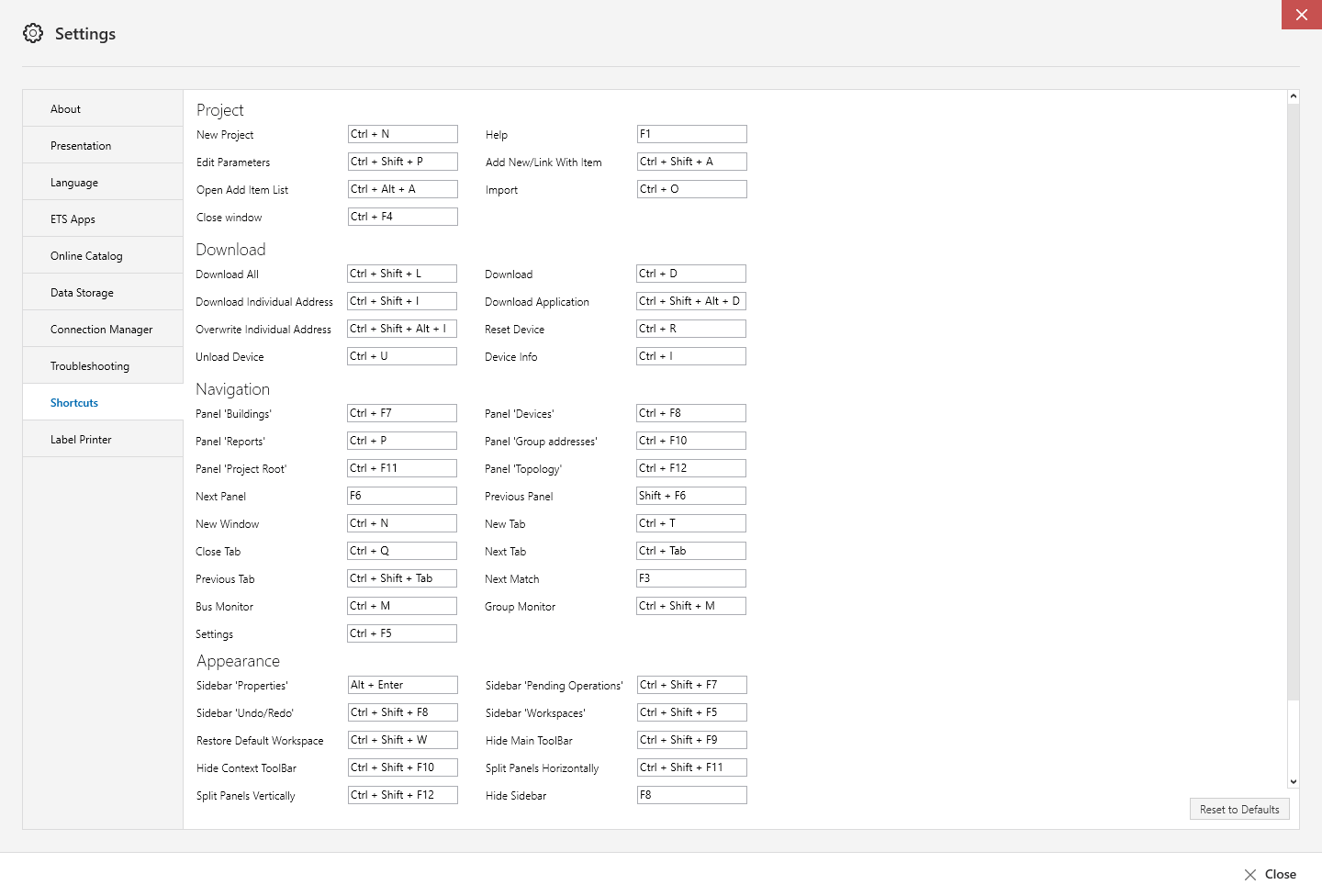

      These shortcuts allow experienced users to work with ETS even more quickly. One can replace existing keyboard shortcuts with others. To do that, click on the shortcut field and enter the desired key combination.


      Option Description
      Reset to defaults Resets all user-specific settings to the ETS default settings.

      Valid Key Combinations

      Option Description
      Permissible key combinations
      • Function keys F1 ... F12
      • Shift + function keys F1 ... F12
      • Ctrl- and/or Alt- and/or Shift key plus letter or number
      Inadmissible key combinations
      • Shift plus letter or number
      • Ctrl + Alt, Ctrl + Shift, Ctrl + Alt + Shift
      • Reserved key combinations such as: Ctrl + C, Ctrl + V, Ctrl + X, Ctrl + A, Ctrl + Y, Ctrl + Z, Ctrl + Insert, Shift + Delete

      Predefined Menu Key Combinations

      ETS uses predefined keyboard shortcuts in the menus of the Menu Bar. When the Alt key is pressed, these shortcuts are indicated by an underlined character, as in Copy or Delete. These shortcuts can only be invoked by pressing the Alt key + the underlined character from the menu.

      Windows default keyboard shortcuts

      The following Windows default keyboard shortcuts are supported and cannot be modified.

      • [ALT] + [F4] = closes the current ETS6 main window. Only if the last ETS6 main window will be closed, the whole application closes (compare closing a main window with the red X button in the window title bar).

      • [CTRL] + [F4] = closes the currently active tab. If this was the last tab of the current main window that was closed, a new overview tab will open instead.

      • [CTRL] + [TAB] = selects the 'next' tab in the current main window. If the current tab is the rightmost one, switches over to the first one.

      • [CTRL] + [SHIFT] + [TAB] = selects the 'previous' tab in the current main window. If the current tab is the leftmost one, switch over to the last one.

      Predefined System Keys

      Option Description
      Esc Key
      • Modal windows (see Diagnostics) can be closed at any time by pressing the Esc key, independent of their visibility.
      Insert Key
      • Add <element>
      • Link with

      The <element> in this case is context dependent, e.g. a room in the building view or a device in the topology
      Delete Key
      • Delete <element>
      • Disconnect connection

      The <element> in this case is context dependent, e.g. a room in the building view or a device in the topology
      Scrolling The keyboard shortcut to jump to the beginning/end of a tree/list view window (also monitor) is Ctrl + Pos 1/ End.
      Alt + Enter Opens the Properties container from the sidebar
