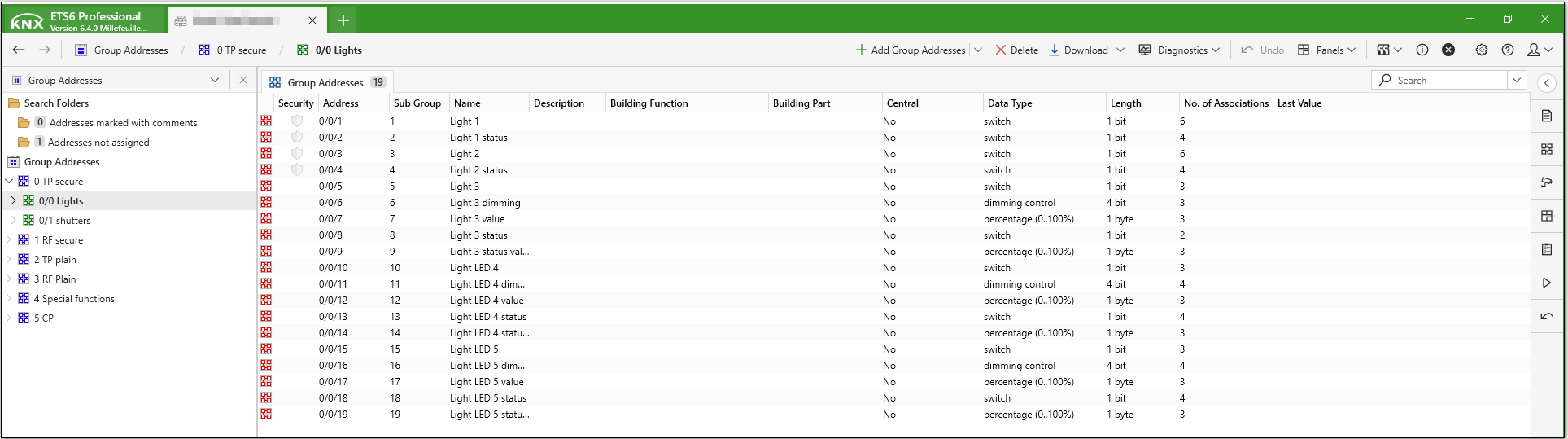

This panel is used to generate and define group addresses.
This panel is required together with the Buildings panel to link the group addresses to the corresponding group objects. The group addresses in this panel are presented according to the group address settings in project details.
The representation of the group addresses in different levels has no functional effect. It only enhances lucidity. The 3-level structure is used in this documentation. If you select a subgroup, the group objects that have been assigned to the group address are displayed in the right-hand list view.
The lowest level element in a "Group Address chain" is always a (sub-) group address; you can only link group objects with a group address.
Changing a main or a middle Group in an installation that has already been commissioned, changes also all the subordinate group addresses at the same time. Consequently, the affected devices have to be re-downloaded.
