Columns can be configured in the panel's list view.
Column Functions
| Function name | Description |
|---|---|
| Move | You can move a column to another location by holding down the left mouse button and dragging it from the initial position to the target position, and then releasing it. |
| Enable/Disable | If you right-click on a column, a selection dialog appears. There, you can enable or disable the desired column. |
| Sort | Sort the list according to any of the displayed columns by left-clicking on the desired column header in the List View. A small arrow in the header indicates the sorting column. Clicking the column again will switch between ascending and descending order. |
| Filter & Search | You can reduce the number of (List View) entries using the Filter Function or use the search function. |
| Column Width | You can reset the selected column to its default width by clicking on the column delimiter (between the individual columns). Activation of Default workspace resets all columns in all windows to their default width. |
Important Columns
| Column name | Column description |
|---|---|
| Bus current | The power consumption for this device specified by the manufacturer; used in the Line (Information tab) to calculate the total power consumption. |
| Security | This device supports KNX Secure; For more information, see Devices & Security. |

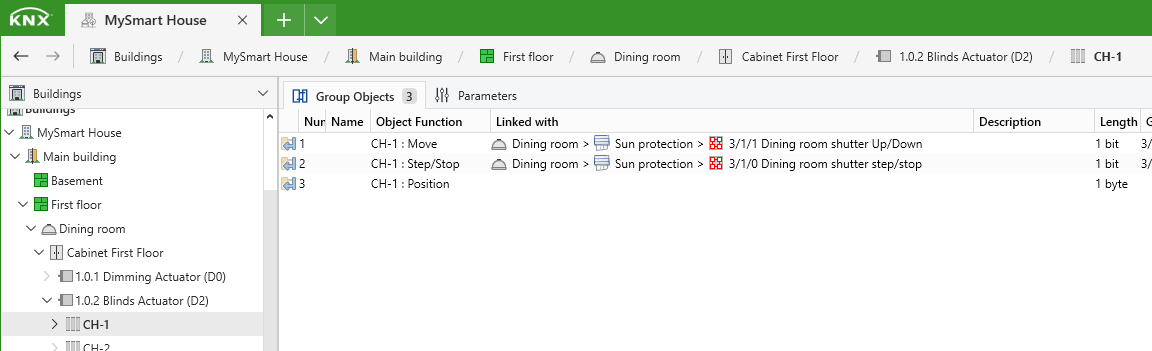

| Channels | Devices with Channels show here the corresponding channel information (Label). Useful in Group Address Panel to see channels of a device linked to a specific group address. |
