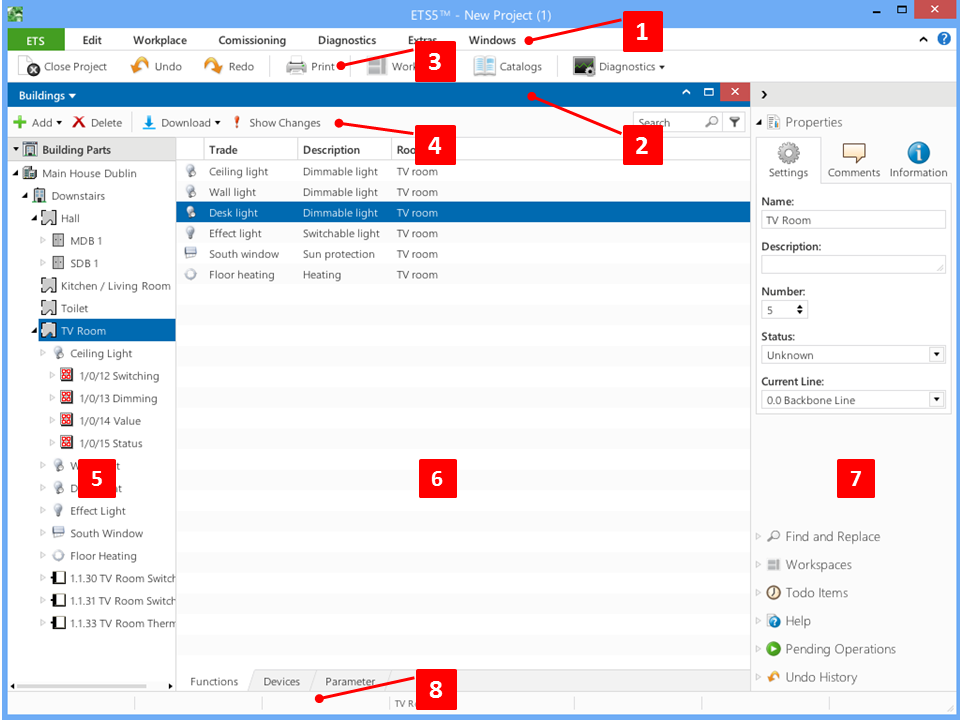

The Sidebar (7) bundles functions and information frequently needed during design and commissioning of ETS/KNX projects.
Properties
- The Sidebar is always displayed at the right edge of the screen. It is not (any longer) possible to switch it to the left side.
- Use the symbol > at the top edge to minimize the Sidebar (only icons are shown) and use < to maximize it.
- You can select the containers to be displayed using the icons in the title bar. Unwanted containers can simply be closed using the symbol >> (in the top right corner). Please bear in mind that invisible containers are not automatically reactivated by ETS (to prevent the unwanted opening of windows).
- The Sidebar can be floating or docked.
The Sidebar itself accommodates the following (view) containers.
- Properties Container
- Find and Replace Container
- Workspaces Container
- To Do Items Container
- Pending Operations Container
- Undo History Container
Keyboard input made in the context of the Sidebar is refreshed in the List View or Tree View only when you have left the respective input field (e.g. by means of a mouse click in another field). The ENTER key has no effect here.
